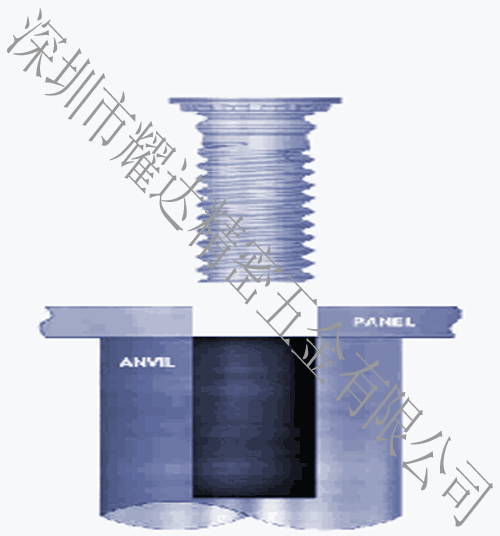

將產品放入預先沖好或鉆好的安裝孔內，按標準安裝力對產品施加壓力使產品安裝到位。在施加壓力的過程中，產品頭部排出的板料平穩、均勻的流入筋鍵周邊和容槽內,安裝完畢后，安裝板表面平整，安裝效果可靠，而且產品具有承受高扭出力和高推出力的性能。在安裝施壓過程中，需要注意的是：螺栓安裝在
1.51mm 的板料或高于該厚度的板料中時，下模上需有一個容得下螺栓的通孔，而在板料厚度小于 1.51 mm
的情況下，下模需要加工一個沉孔，以便螺栓頭部進入下模而使之順利壓入板料。
|
|||||||
| 下模尺寸(所有尺寸單位為毫米) | |||||||
| 螺紋編碼 | A+0.1 | C+0.08 | |||||
| M2.5 | 3.1 | 2.53 | |||||
| M3 | 3.6 | 3.03 | |||||
| M3.5 | 4.1 | 3.53 | |||||
| M4 | 4.6 | 4.03 | |||||
| M5 | 5.6 | 5.03 | |||||
| M6 | 6.6 | 6.03 | |||||
| M8 | 8.6 | 8.03 | |||||
| 產品的性能數椐 | |||||||
| 螺紋編碼 | 產品類型 | 螺母的緊固 | 安裝板厚度和材質 | 安裝板硬度HRB | 安裝力 | 推出力 | 扭出力 |
| 扭矩 | (KN) | (N) | (N.m) | ||||
| (N.m) | |||||||
| M2.5 | FHS | 0.41 | 1.6mm鋁材 | 29 | 11.6 | 465 | 0.8 |
| FHS | 1.5mm鋼材 | 59 | 13.8 | 740 | 0.8 | ||
| M3 | FHS | 0.74 | 1.6mm鋁材 | 29 | 12.9 | 600 | 1.3 |
| FHS | 1.5mm鋼材 | 59 | 14.7 | 820 | 1.3 | ||
| M3.5 | FHS | 1.15 | 1.6mm鋁材 | 29 | 15.6 | 800 | 1.7 |
| FHS | 1.5mm鋼材 | 59 | 22.3 | 1335 | 2 | ||
| M4 | FHS | 1.7 | 1.6mm鋁材 | 29 | 22.3 | 975 | 2.9 |
| FHS | 1.5mm鋼材 | 59 | 26.7 | 1780 | 2.9 | ||
| M5 | FHS | 3.5 | 1.6mm鋁材 | 29 | 24.5 | 1070 | 3.5 |
| FHS | 1.5mm鋼材 | 59 | 32.5 | 2000 | 6.3 | ||
| M6 | FHS | 5.9 | 2.4mm鋁材 | 28 | 28.9 | 1660 | 7.3 |
| FHS | 2.2mm鋼材 | 46 | 44.5 | 2560 | 10.1 | ||
| M8 | FHS | 14.2 | 2.4mm鋁材 | 28 | 29.8 | 1910 | 11.3 |
